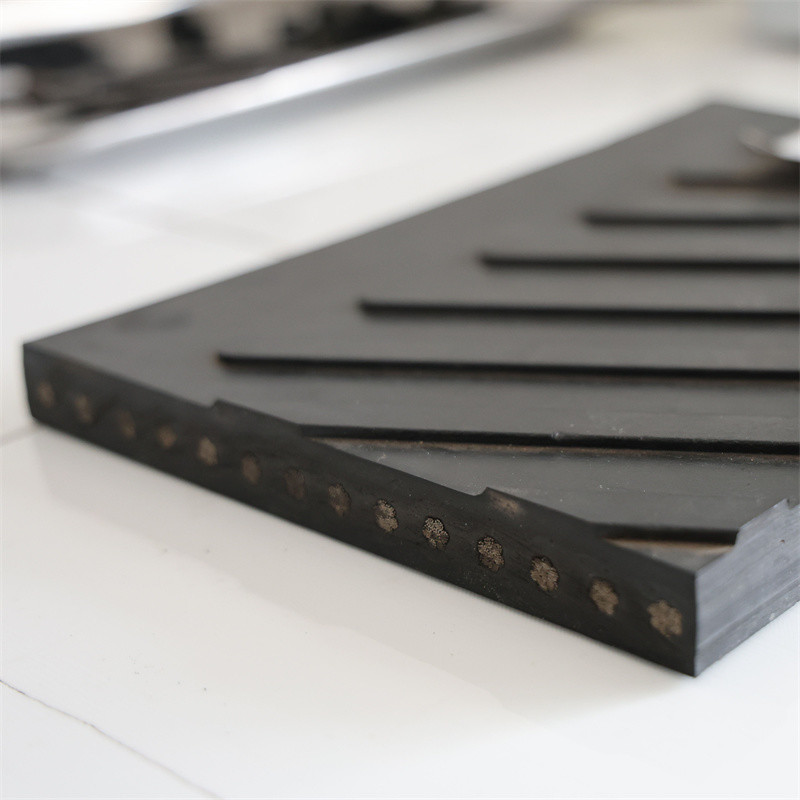

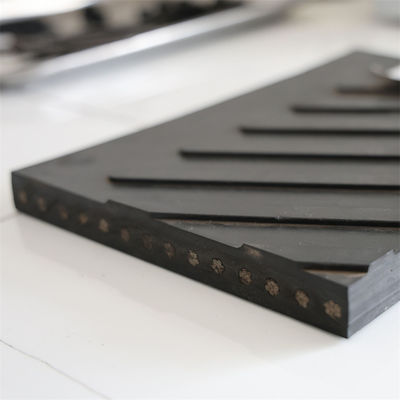

ST2500 Steel Cord Conveyor Belt

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xBelt Load Capacity | Heavy-duty | Belt Features | Low Noise, Low Maintenance |
---|---|---|---|
Belt Width | 650mm-2400mm | Belt Type | Timing Belt |
Belt Chemical Resistance | Excellent | Belt Color | Black |
Belt Length | Customizable | Belt Thickness | 4mm-10mm |
Belt Application | General | Belt Flexibility | Flexible |
Belt Tensile Strength | 2500N/mm | Belt Abrasion Resistance | High |
Belt Temperature Range | -45℃ To 150℃ | Maximum Nominal Diameter Of Steel Wire Rope | 3mm-15mm |
Steeel Cord Pith | 10mm-21mm | ||
Highlight | general application steel cord conveyor belt,flexural resistance steel cord conveyor belt,flexural resistance steel cord rubber conveyor belt |
Characteristics
1) The width can reach 2400mm
2) Strength can reach 7500N/mm
3) Can do embedded coil wire rope core conveyor belt, tubular belt, lifting belt, guard belt
4) Have been subjected to rigorous testing by German RWE and TUV
Advantages
1.High strength
2.Low elongation
3.Good troughability
4.Long work life
5.Good flexural resistance
Standard Specifications
Model | Tensile Strength(N/mm) |
Cord Pitch (mm) |
Cord Diameter (mm) |
Min Cover thickness (mm) |
Width (mm) |
ST630 | 630 | 10 | 3 | 4 |
800-2400 |
ST800 | 800 | 10 | 3.5 | 4 | |
ST1000 | 1000 | 12 | 4 | 4 | |
ST1250 | 1250 | 12 | 4.5 | 4 | |
ST1600 | 1600 | 12 | 5 | 4 | |
ST2000 | 2000 | 12 | 6 | 4 | |
ST2500 | 2500 | 15 | 7.2 | 5 | |
ST3150 | 3150 | 15 | 8.1 | 5.5 | |
ST3500 | 3500 | 15 | 8.6 | 6 | |
ST4000 | 4000 | 15 | 8.9 | 6.5 | |
ST4500 | 4500 | 16 | 9.7 | 7 | |
ST5000 | 5000 | 17 | 10.9 | 7.5 | |
ST5400 | 5400 | 17 | 11.3 | 8 | |
ST6300 | 6300 | 19.5 | 12.8 | 10 | |
ST7000 | 7000 | 19.5 | 13.5 | 10 | |
ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.
Cover Grades
Grade |
Tensile Strength(ISO37) Mpa
|
Elongation at break min. (ISO37) % |
Abrasion max. (ISO4649) mm³ |
H | 24 | 450 | 120 |
D | 18 | 400 | 100 |
XTO D | 18 | 400 | 50 |
The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
