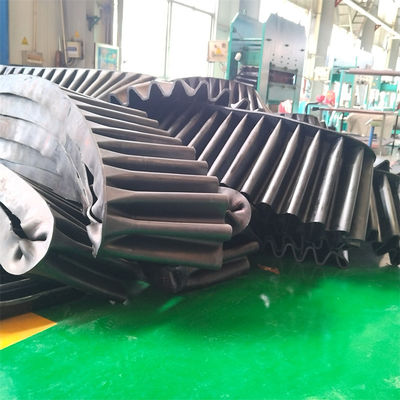

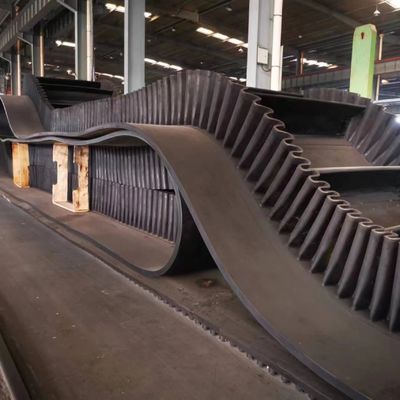

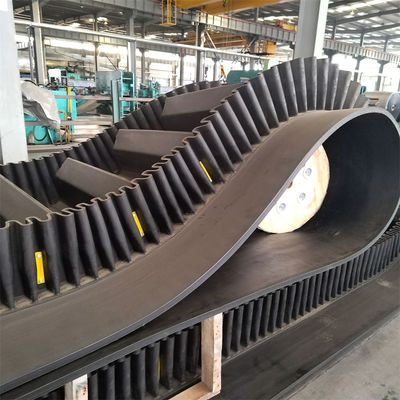

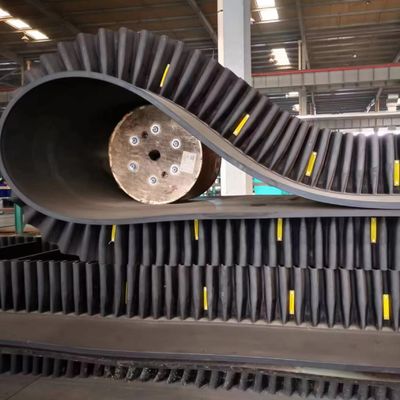

C Cleat Rubber Multi Ply Textile Corrugated Sidewall Conveyor Belt
| Place of Origin | SHANDONG,CHINA |
|---|---|
| Brand Name | XTO |
| Certification | MA,ISO |
| Model Number | NN100 |
| Minimum Order Quantity | 100 Suqare Meters |
| Price | FOB＄15-20 |
| Packaging Details | customizable |
| Delivery Time | 30Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 2.6miliion meters per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Belt Width | Customizable | Cleat Type | T, C, TC, TCS |
|---|---|---|---|
| Impact Resistance | Excellent | Type | Multi-ply Textile Conveyor Belt |
| Temperature Range | -45°C To 180°C | Adhesion | Strong |
| Cover Compound | Rubber | Tensile Strength | 300-2000N/mm |
| Highlight | c cleat fabric conveyor belt,industrial fabric belt conveyor,industrial fabric conveyor belt |
||
Product Description
Usage
The Corrugated Sidewall Multi-ply Textile Conveyor Belt, also known as the Riffled Edge Polylayer Textile Transportation Band, is a highly versatile and durable conveyor belt designed for high-temperature and heavy-duty applications. This product is made from high-quality textile materials and features a unique corrugated sidewall design, making it suitable for conveying a wide range of materials in various industries.
Characteristics
1.Materials can be conveyed at a large slope up to 90°.
2.The belt has large loading capacity and the materials won’t be scattered.
3.The slope of conveying can be changed from horizontal to sloping, or from sloping to horizontal.
4.The conveyor is simple in structure, flexible in arrangement and occupying only a small area.
Standard Specifications
| Strength(KN/m) | No. Of Piles | Carcass Type | Belt Width |
| 300 | 2-4 | NN/EP |
500-2400mm |
| 400 | 2-4 | NN/EP | |
| 500 | 2-5 | NN/EP | |
| 630 | 3-6 | NN/EP | |
| 800 | 3-6 | NN/EP | |
| 1000 | 3-6 | NN/EP | |
| 1250 | 3-6 | NN/EP | |
| 1400 | 3-6 | NN/EP | |
| 1600 | 4-6 | NN/EP | |
| 2000 | 4-6 | NN/EP |
Note: It can be customized according to customers’ requirements.

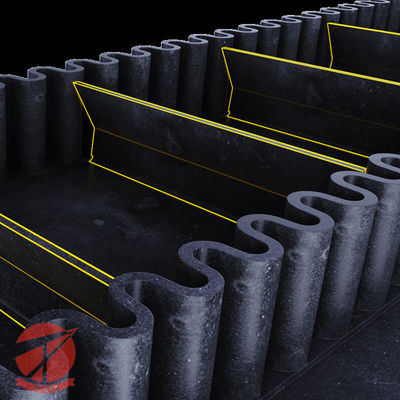

Sidewall Specifications
The sidewalls are moulded in a high quality rubber.
| Type | Square Ratio | Weight(kgs) | Bottom width |
| S60 | 0.75 | 2.5 | 50 |
| S80 | 0.82 | 3.53 | 50 |
| S100 | 1.42 | 4.18 | 50 |
| S120 | 1.69 | 4.53 | 50 |
| S160 | 2.68 | 8 | 75 |
| S200 | 3.53 | 9.5 | 75 |
| S240 | 5.15 | 12.5 | 75 |
| ES300 | 7.52 | 11 | 100 |
| ES400 | 10.67 | 14.5 | 100 |
| ES500 | 13.82 | 17.6 |

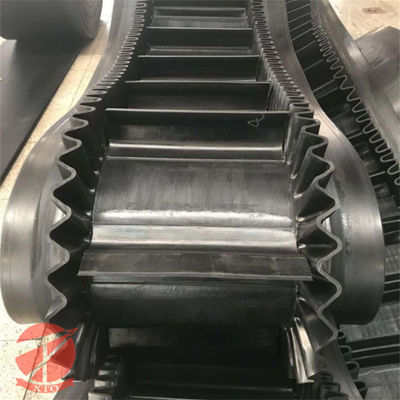

Cleat Specifications
The cleat is made of high quality rubber, having high elasticity on the supporting effect.
| Type | Square Ratio | Weight(kgs) |
| TC55 | 0.72 | 1.05 |
| TC75 | 0.81 | 1.2 |
| TC90 | 1.34 | 2 |
| TC110 | 1.76 | 2.3 |
| TC140 | 2.36 | 3.43 |
| TC180 | 3.13 | 4.52 |
| TC220 | 5.63 | 5.8 |
| TC280 | 10.7 | 8.6 |
| TCS360 | 14.45 | 13.6 |
| TCS470 | 28.9 |
Cover Grades
| Grade |
Tensile strength min. (ISO37) Mpa |
Elongation at break min. (ISO37) % |
Abrasion max. (ISO4649) mm³ |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| L | 15 | 350 | 200 |
Applications
1.Mining Industry: In mines, multi-ply textile conveyor belt is commonly used for transporting materials such as coal, ores, and slag. Their high tensile strength and resistance to abrasion make them suitable for prolonged operation in harsh environments.
2.Construction Materials Industry: Used for conveying materials such as sand, gravel, cement, and concrete. These materials often require extensive transportation, and multi-ply textile conveyor belt provide efficient conveying solutions.
3.Metallurgical Industry: In industries such as steel mills and aluminum plants, multi-ply textile conveyor belt is used for transporting raw materials and finished products, meeting high strength and abrasion resistance requirements.
4.Ports and Logistics Industry: At ports, docks, and terminals, multi-ply textile conveyor belt is commonly used for loading and unloading ships and containers, as well as conveying and stacking goods.
5.Agricultural Industry: In agricultural production, such as crop harvesting, storage, and transportation, multi-ply textile conveyor belt also find application.
6.Food Processing and Packaging Industry: Used for conveying food ingredients, packaging materials, etc., meeting food safety and hygiene standards.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
