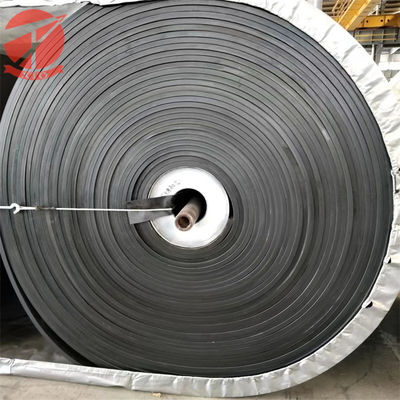

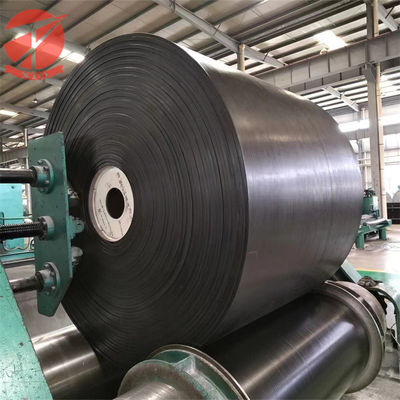

Heavy Duty Steel Cord Conveyor Belt In Mining construction Industries
| Place of Origin | SHANDONG,CHINA |
|---|---|
| Brand Name | XTO |
| Certification | MA,ISO |
| Model Number | ST3500 |
| Minimum Order Quantity | 100 Suqare Meters |
| Price | FOB＄13-15 |
| Packaging Details | customizable |
| Delivery Time | 30Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 3.8miliion meters per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Belt Tensile Strength | 3500N/mm | Belt Thickness | 4mm-10mm |
|---|---|---|---|
| Processing Service | Moulding Cutting | Cover | 4-10mm |
| Cord Diameter | 3-15mm | Temperature Range | -45°C To 150°C |
| Width | 800-2400mm | ||
| Highlight | construction Industries steel cord conveyor belt,Mining Industries steel cord conveyor belt,Heavy Duty steel cord belt |
||
Product Description
Product Description
Steel cord conveyor belt are the ideal solution for transporting materials over long distances and with heavy loads thanks to their high strength. They are extensively used in industries such as coalmining, metallurgy, ports, mines, electricity, chemical and more.
Their strong build not only allows for efficient material transportation, but it also ensures their durability, making them the ideal choice for harsh environments with uneven terrain. Additionally, steel cord conveyor belt offer superior resistance to tearing, making them long-lasting and reliable for businesses that prioritize safety and value maximum productivity.
In summary, the steel cord conveyor belt is a must-have for industries with rigorous transportation needs that require a lasting and reliable conveyor solution.
Features
- High Tensile Strength: The rubber belts are designed for transporting materials over large spans and long distances due to their high tensile strength. They are able to carry heavy loads and withstand the harsh conditions of long distance transportation.
- Small Elongation in Use: The rubber belts have extremely low elongation when in use, meaning they require very short take-up stroke distances. This makes them ideal for use in applications where space is limited and accurate positioning is crucial.

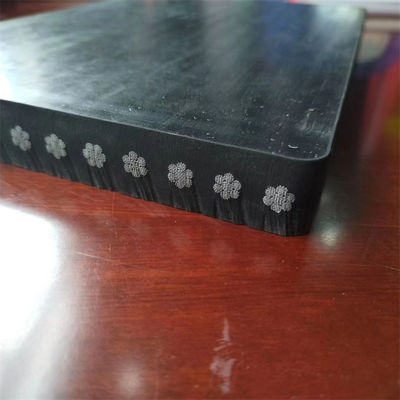

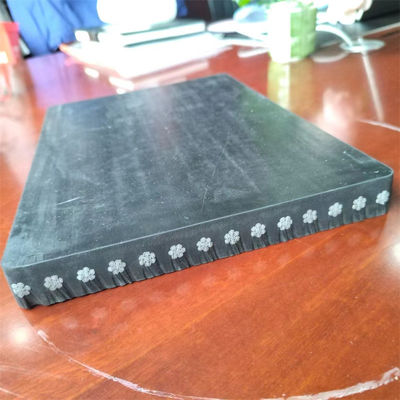

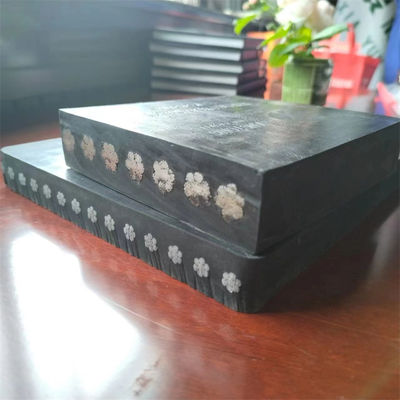

- Small Diameter of Drive Pulley: The carcass of the rubber belt has a layer of longitudinally arranged steel cords that act as its skeleton. This layer of steel cords makes the belt highly resistant to flex fatigue, allowing for smaller diameter drive pulleys to be used. This results in smaller equipment that is more compact and easier to maneuver.
- High Adhesion Between Rubber and Steel Cord: The steel cords used in the carcass of the rubber belt are coated in zinc and the rubber used has the exceptional property of adhering tightly to the steel cords. This results in a belt that is resistant to shock and extremely durable, with a long lifespan and minimal drop or damage over time.
- Even Tension of Steel Cords: Our advanced techniques in manufacturing ensure that the steel cords used in the carcass of the rubber belt are arranged evenly with the same tension, resulting in a well-balanced belt that runs smoothly and without deviation.
- Good Troughability: The lack of a transverse skeleton in the carcass of the rubber belt makes it easy to form a deep trough, allowing for more efficient transportation of materials and preventing any escaping or loss of materials during transport.
- Inspection of the Belt with X-Rays: As an additional safety feature, our rubber belts can be inspected using X-rays. This allows users to detect any damage or wear to the steel cords in the conveyor machines, preventing accidents from occurring and ensuring the safety of all personnel involved.
Standard Specifications
| Model | Tensile Strength(N/mm) |
Cord Pitch (mm) |
Cord Diameter (mm) |
Min Cover thickness (mm) |
Width (mm) |
| ST630 | 630 | 10 | 3 | 4 |
800-2400 |
| ST800 | 800 | 10 | 3.5 | 4 | |
| ST1000 | 1000 | 12 | 4 | 4 | |
| ST1250 | 1250 | 12 | 4.5 | 4 | |
| ST1600 | 1600 | 12 | 5 | 4 | |
| ST2000 | 2000 | 12 | 6 | 4 | |
| ST2500 | 2500 | 15 | 7.2 | 5 | |
| ST3150 | 3150 | 15 | 8.1 | 5.5 | |
| ST3500 | 3500 | 15 | 8.6 | 6 | |
| ST4000 | 4000 | 15 | 8.9 | 6.5 | |
| ST4500 | 4500 | 16 | 9.7 | 7 | |
| ST5000 | 5000 | 17 | 10.9 | 7.5 | |
| ST5400 | 5400 | 17 | 11.3 | 8 | |
| ST6300 | 6300 | 19.5 | 12.8 | 10 | |
| ST7000 | 7000 | 19.5 | 13.5 | 10 | |
| ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.
Cover Grades
| Grade |
Tensile Strength(ISO37) Mpa
|
Elongation at break min. (ISO37) % |
Abrasion max. (ISO4649) mm³ |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| XTO D | 18 | 400 | 50 |
The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
Applications
The application areas of steel cord conveyor belt are diverse and encompass various industries. Here's a detailed overview:
1.Mining and Quarrying: Steel cord conveyor belt find extensive use in the mining and quarrying industry for transporting materials such as coal, ores, and minerals. Given the harsh environments typically found in mines, these conveyor belts must exhibit high strength and resistance to wear, making steel cord conveyor belts indispensable in this sector.
2.Ports and Logistics: In ports and logistics, steel cord conveyor belt is utilized for loading and unloading cargo from ships, as well as for conveying materials during warehousing and sorting processes. Their ability to handle heavy and bulky goods, coupled with long service life and low maintenance costs, makes them essential equipment in this industry.
3.Construction Materials Industry: Steel cord conveyor belt is commonly used in the construction materials industry for transporting materials such as cement, sand, and concrete. They efficiently convey raw materials from one location to another at construction sites, thereby enhancing construction efficiency and job site safety.
4.Metallurgical Industry: In the metallurgical industry, steel cord conveyor belt is employed for transporting materials such as ores, slag, and molten metals. They withstand high temperatures and the corrosive effects of various substances, ensuring stable conveying performance even in demanding conditions.
5.Chemical Industry: Steel cord conveyor belt is widely used in the chemical industry for transporting chemical raw materials and products. Given the presence of corrosive substances and high-temperature environments common in chemical plants, conveyor belts in this sector must meet stringent requirements, making steel cord conveyor belt indispensable.
Why Choose Us?
Cooperative Partner
We are proud to have established long-term partnerships with many outstanding companies. These partners come from different industries, such as mining, manufacturing, logistics and transportation. For example, Ordered by BHP, RIO-TINTO, VALE repeatedly.We are committed to providing customers with efficient and reliable material handling solutions, and through close cooperation, we realize the sharing of resources and complementary advantages, and create greater value for customers.
Support and Services
Our Steel Cord Conveyor Belt product offers superior strength and durability for heavy-duty mining, industrial, and transportation applications. Our technical support team is available to assist with any questions or concerns regarding belt installation, maintenance, and troubleshooting. We also offer a range of services including belt splicing, repair, and replacement to ensure maximum efficiency and longevity of your conveyor system.
Packing and Shipping
Product Packaging:
- Covered with plastic film
- Packed in wooden cases
- Marked with product details and shipping information
Shipping:
- Shipped by sea, air, or land transportation
- Delivery time varies depending on the destination
- Shipping costs will be calculated based on the weight and volume of the product
