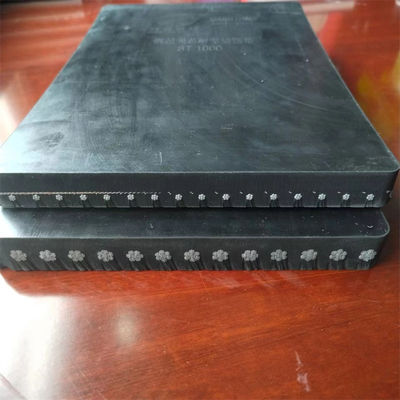

DIN Grade Steel Cord Conveyor Belt For Moulding Cutting
| Place of Origin | SHANDONG,CHINA |
|---|---|
| Brand Name | XTO |
| Certification | MA,ISO |
| Model Number | ST6300 |
| Minimum Order Quantity | 100 Suqare Meters |
| Price | FOB＄13-15 |
| Packaging Details | customizable |
| Delivery Time | 30Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 3.8miliion meters per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Processing Service | Moulding Cutting | Cover | 4-10mm |
|---|---|---|---|
| Cord Diameter | 3-15mm | Width | 800-2400mm |
| Belt Thickness | 4mm-10mm | Temperature Range | -45°C To 150°C |
| Belt Tensile Strength | 6300N/mm | Cover Rubber Grade | DIN-X, DIN-Y, DIN-Z, RMA-I, RMA-II |
| Highlight | DIN Grade steel cord conveyor belt,Moulding Cutting steel cord conveyor belt,DIN Grade steel cord belt |
||
Product Description
Product Description
Steel cord conveyor belt are a superior option for transporting materials that require high strength, long distance, and heavy load transportation. These conveyor belts are extensively employed in a variety of industries such as coalmines, mines, ports, metallurgy, electricity, chemical industries, amongst others.

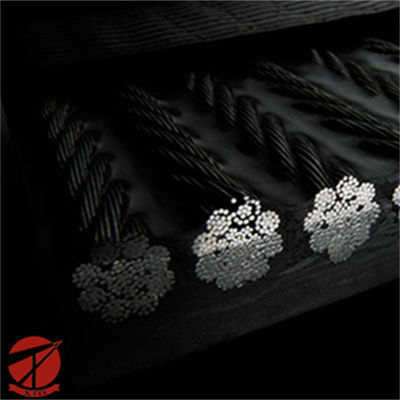

Thanks to their steel cord design, these belts have a robust structure that ensures they can handle the heaviest loads and longest distances without any issues. The steel cords provide the conveyor belts with superior flexibility, increased stability, and excellent impact resistance capabilities which makes them the perfect choice for material transport over long distances.
The use of steel cord conveyor belt guarantees that your material transport requirements are met with ease, giving you increased productivity, efficiency, and reduced downtime for your industrial processes. By investing in steel cord conveyor belts, you can trust that your material transport needs are well catered to, and you can reduce the risk of accidents and other material handling issues.
Standard Specifications
| Model | Tensile Strength(N/mm) |
Cord Pitch (mm) |
Cord Diameter (mm) |
Min Cover thickness (mm) |
Width (mm) |
| ST630 | 630 | 10 | 3 | 4 |
800-2400 |
| ST800 | 800 | 10 | 3.5 | 4 | |
| ST1000 | 1000 | 12 | 4 | 4 | |
| ST1250 | 1250 | 12 | 4.5 | 4 | |
| ST1600 | 1600 | 12 | 5 | 4 | |
| ST2000 | 2000 | 12 | 6 | 4 | |
| ST2500 | 2500 | 15 | 7.2 | 5 | |
| ST3150 | 3150 | 15 | 8.1 | 5.5 | |
| ST3500 | 3500 | 15 | 8.6 | 6 | |
| ST4000 | 4000 | 15 | 8.9 | 6.5 | |
| ST4500 | 4500 | 16 | 9.7 | 7 | |
| ST5000 | 5000 | 17 | 10.9 | 7.5 | |
| ST5400 | 5400 | 17 | 11.3 | 8 | |
| ST6300 | 6300 | 19.5 | 12.8 | 10 | |
| ST7000 | 7000 | 19.5 | 13.5 | 10 | |
| ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.
Cover Grades
| Grade |
Tensile Strength(ISO37) Mpa
|
Elongation at break min. (ISO37) % |
Abrasion max. (ISO4649) mm³ |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| XTO D | 18 | 400 | 50 |
The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
Applications
The application areas of steel cord conveyor belt are diverse and encompass various industries. Here's a detailed overview:
1.Mining and Quarrying: Steel cord conveyor belt find extensive use in the mining and quarrying industry for transporting materials such as coal, ores, and minerals. Given the harsh environments typically found in mines, these conveyor belts must exhibit high strength and resistance to wear, making steel cord conveyor belts indispensable in this sector.
2.Ports and Logistics: In ports and logistics, steel cord conveyor belt is utilized for loading and unloading cargo from ships, as well as for conveying materials during warehousing and sorting processes. Their ability to handle heavy and bulky goods, coupled with long service life and low maintenance costs, makes them essential equipment in this industry.
3.Construction Materials Industry: Steel cord conveyor belt is commonly used in the construction materials industry for transporting materials such as cement, sand, and concrete. They efficiently convey raw materials from one location to another at construction sites, thereby enhancing construction efficiency and job site safety.
4.Metallurgical Industry: In the metallurgical industry, steel cord conveyor belt is employed for transporting materials such as ores, slag, and molten metals. They withstand high temperatures and the corrosive effects of various substances, ensuring stable conveying performance even in demanding conditions.
5.Chemical Industry: Steel cord conveyor belt is widely used in the chemical industry for transporting chemical raw materials and products. Given the presence of corrosive substances and high-temperature environments common in chemical plants, conveyor belts in this sector must meet stringent requirements, making steel cord conveyor belt indispensable.
Why Choose Us?
Cooperative Partner
We are proud to have established long-term partnerships with many outstanding companies. These partners come from different industries, such as mining, manufacturing, logistics and transportation. For example, Ordered by BHP, RIO-TINTO, VALE repeatedly.We are committed to providing customers with efficient and reliable material handling solutions, and through close cooperation, we realize the sharing of resources and complementary advantages, and create greater value for customers.
Support and Services
The Steel Cord Conveyor Belt is a high-quality product designed to provide exceptional performance and longevity in a wide range of applications. Our technical support and services team is available to assist with any questions, concerns, or issues you may have with your conveyor belt.
We offer a comprehensive range of services to help you get the most out of your General Steel Cord Conveyor Belt, including:
- Installation assistance
- Maintenance and repair services
- Training and education programs for your staff
- Customized solutions for unique applications
Packing and Shipping

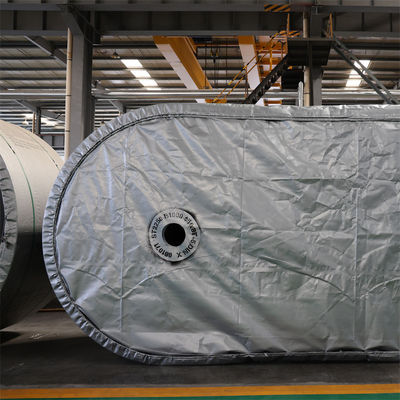

Product Packaging:
- The steel cord conveyor belt will be packed in rolls with a length of 100 meters.
- The rolls will be wrapped with water-proof plastic film and then packed in wooden cases for protection during shipment.
- The belt edges will be protected with edge protectors to prevent damage during transportation.
Shipping:
- The steel cord conveyor belt will be shipped by sea or by air, depending on the customer's preference and urgency.
- The delivery time will vary depending on the destination, but we will inform the customer of the estimated shipping time and provide tracking information once the product has been shipped.
- We will work with the customer to ensure that the shipping process is smooth and that the product arrives at the destination in a timely and safe manner.
