MA Wide Range Steel Cord Conveyor Belt Moulding Cutting Service
| Place of Origin | SHANDONG,CHINA |
|---|---|
| Brand Name | XTO |
| Certification | MA,ISO |
| Model Number | ST7000 |
| Minimum Order Quantity | 100 Suqare Meters |
| Price | FOB＄13-15 |
| Packaging Details | customizable |
| Delivery Time | 30Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 3.8miliion meters per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Processing Service | Moulding Cutting | Width | 800-2400mm |
|---|---|---|---|
| Temperature Range | -45°C To 150°C | Cover | 4-10mm |
| Belt Tensile Strength | 7000N/mm | Belt Thickness | 4mm-10mm |
| Cover Rubber Grade | DIN-X, DIN-Y, DIN-Z, RMA-I, RMA-II | ||
| Highlight | Wide Range steel cord conveyor belt,MA steel cord conveyor belt,Wide Range steel cord belt |
||
Product Description
Product Description
- Steel cord conveyor belt are designed for moving materials long distances and carrying heavy loads. They’re an ideal option for industries such as mines, coal mines, ports, metallurgy, electricity, and chemical industries. These belts are known for their high strength and durability, ensuring that they can withstand even the toughest working conditions.
- If your industry requires transporting materials over long distances, steel cord conveyor belt are the perfect choice. Not only are they able to handle heavy loads, but they’re also suitable for a variety of products and materials. Whether you’re transporting coal, metal ore, or other materials, these belts are designed to meet your needs.
Features
- High tensile strength: Our belts are perfect for transporting materials over large distances thanks to their high tensile strength.
- Small elongation in use: Our belts only need a short take-up stroke distance, making them easy to use.

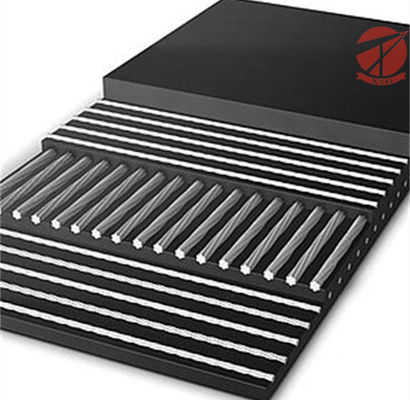

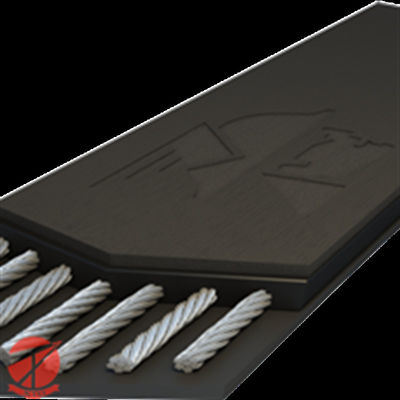

- Small diameter of drive pulley: The carcass of our belts is made up of longitudinally arranged steel cords, making it resistant to flex fatigue. This means that smaller drive pulleys can be used, making equipment more compact.
- High adhesion between rubber and steel cord: Our steel cords are coated with zinc, and our rubber has excellent adhesion to them, resulting in tightly adhered belts that are resistant to shock and have a long service life.
- Even tension of steel cords: Our advanced manufacturing techniques ensure that our steel cords are evenly arranged with the same tension, resulting in belts that are well-balanced in running and difficult to run deviation.
- Good troughability: Our belts have no transverse skeleton, allowing them to form a deep trough that can carry more materials and prevent them from escaping.
- Inspection of the belt with X-rays: For added safety, users can take X-rays to inspect the steel cords in our belts and prevent accidents from happening.

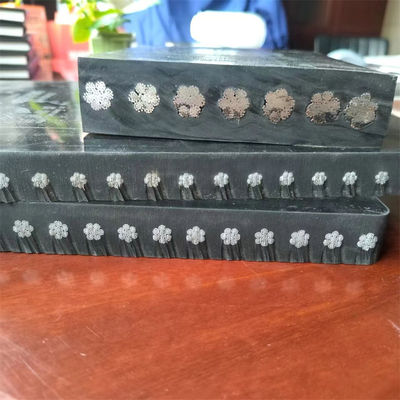

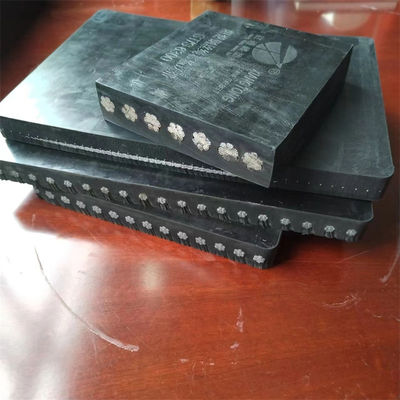

Standard Specifications
| Model | Tensile Strength(N/mm) |
Cord Pitch (mm) |
Cord Diameter (mm) |
Min Cover thickness (mm) |
Width (mm) |
| ST630 | 630 | 10 | 3 | 4 |
800-2400 |
| ST800 | 800 | 10 | 3.5 | 4 | |
| ST1000 | 1000 | 12 | 4 | 4 | |
| ST1250 | 1250 | 12 | 4.5 | 4 | |
| ST1600 | 1600 | 12 | 5 | 4 | |
| ST2000 | 2000 | 12 | 6 | 4 | |
| ST2500 | 2500 | 15 | 7.2 | 5 | |
| ST3150 | 3150 | 15 | 8.1 | 5.5 | |
| ST3500 | 3500 | 15 | 8.6 | 6 | |
| ST4000 | 4000 | 15 | 8.9 | 6.5 | |
| ST4500 | 4500 | 16 | 9.7 | 7 | |
| ST5000 | 5000 | 17 | 10.9 | 7.5 | |
| ST5400 | 5400 | 17 | 11.3 | 8 | |
| ST6300 | 6300 | 19.5 | 12.8 | 10 | |
| ST7000 | 7000 | 19.5 | 13.5 | 10 | |
| ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.
Cover Grades
| Grade |
Tensile Strength(ISO37) Mpa
|
Elongation at break min. (ISO37) % |
Abrasion max. (ISO4649) mm³ |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| XTO D | 18 | 400 | 50 |
The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
Applications
The application areas of steel cord conveyor belt are diverse and encompass various industries. Here's a detailed overview:
1.Mining and Quarrying: Steel cord conveyor belt find extensive use in the mining and quarrying industry for transporting materials such as coal, ores, and minerals. Given the harsh environments typically found in mines, these conveyor belts must exhibit high strength and resistance to wear, making steel cord conveyor belts indispensable in this sector.
2.Ports and Logistics: In ports and logistics, steel cord conveyor belt is utilized for loading and unloading cargo from ships, as well as for conveying materials during warehousing and sorting processes. Their ability to handle heavy and bulky goods, coupled with long service life and low maintenance costs, makes them essential equipment in this industry.
3.Construction Materials Industry: Steel cord conveyor belt is commonly used in the construction materials industry for transporting materials such as cement, sand, and concrete. They efficiently convey raw materials from one location to another at construction sites, thereby enhancing construction efficiency and job site safety.
4.Metallurgical Industry: In the metallurgical industry, steel cord conveyor belt is employed for transporting materials such as ores, slag, and molten metals. They withstand high temperatures and the corrosive effects of various substances, ensuring stable conveying performance even in demanding conditions.
5.Chemical Industry: Steel cord conveyor belt is widely used in the chemical industry for transporting chemical raw materials and products. Given the presence of corrosive substances and high-temperature environments common in chemical plants, conveyor belts in this sector must meet stringent requirements, making steel cord conveyor belt indispensable.
Why Choose Us?
Cooperative Partner
We are proud to have established long-term partnerships with many outstanding companies. These partners come from different industries, such as mining, manufacturing, logistics and transportation. For example, Ordered by BHP, RIO-TINTO, VALE repeatedly.We are committed to providing customers with efficient and reliable material handling solutions, and through close cooperation, we realize the sharing of resources and complementary advantages, and create greater value for customers.
Support and Services
Our technical team can provide on-site support to assess the conveyor belt's condition, recommend solutions, and optimize its performance. We also offer training programs to help our customers understand the proper usage and maintenance of our conveyor belts.
In addition, we provide a range of services, including belt splicing, pulley lagging, belt cleaning, and belt tracking. Our experienced technicians use advanced tools and techniques to ensure the highest quality of service and minimize downtime.
Our goal is to provide our customers with reliable and efficient conveyor belt solutions that meet their specific needs. Contact us for more information about our Steel Cord Conveyor Belt product and technical support and services.
Packing and Shipping
Product Packaging:
- The steel cord conveyor belt is wrapped in plastic film or woven bag to prevent moisture and dust.
- The belt is then placed on a wooden pallet and secured with metal straps.
- The package is labeled with product information and handling instructions for easy identification and safe transportation.
Shipping:
- The steel cord conveyor belt is shipped via sea or air transportation depending on the customer's preference and urgency.
- The package is loaded onto a container or aircraft carefully to avoid damage during transit.
- The customer is provided with a tracking number to monitor the shipment progress and estimated delivery time.
