Wide Industrial Applications Steel Cord Conveyor Belt Heavy Duty
| Place of Origin | SHANDONG,CHINA |
|---|---|
| Brand Name | XTO |
| Certification | MA,ISO |
| Model Number | ST5000 |
| Minimum Order Quantity | 100 Suqare Meters |
| Price | FOB＄13-15 |
| Packaging Details | customizable |
| Delivery Time | 30Days |
| Payment Terms | L/C,T/T |
| Supply Ability | 3.8miliion meters per year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Belt Thickness | 4mm-10mm | Cover | 4-10mm |
|---|---|---|---|
| Cord Diameter | 3-15mm | Belt Tensile Strength | 4000N/mm |
| Width | 800-2400mm | Cover Rubber Grade | DIN-X, DIN-Y, DIN-Z, RMA-I, RMA-II |
| Temperature Range | -45°C To 150°C | ||
| Highlight | steel cord conveyor belt heavy duty,Industrial steel cord conveyor belt,Wide Industrial Applications steel cord belt |
||
Product Description
Product Description
Steel cord conveyor belt are the go-to option when it comes to transporting heavy materials over long distances. These belts offer a high level of strength and durability, making them suitable for industries that require heavy load transportation. The steel cord conveyor belt are widely used in industries such as coalmines, mines, ports, metallurgy, electricity, and chemical industries.

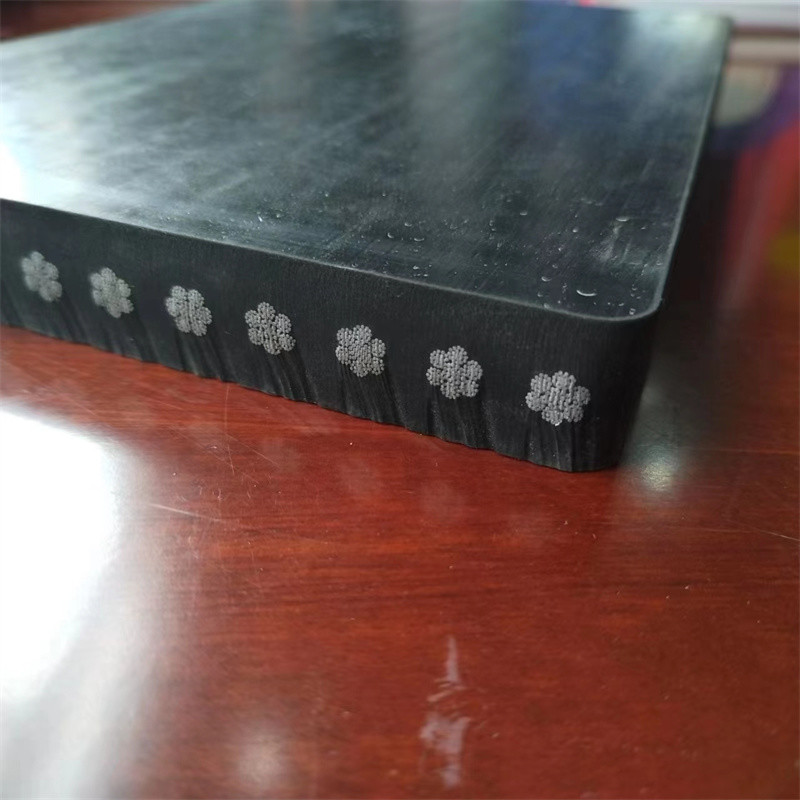

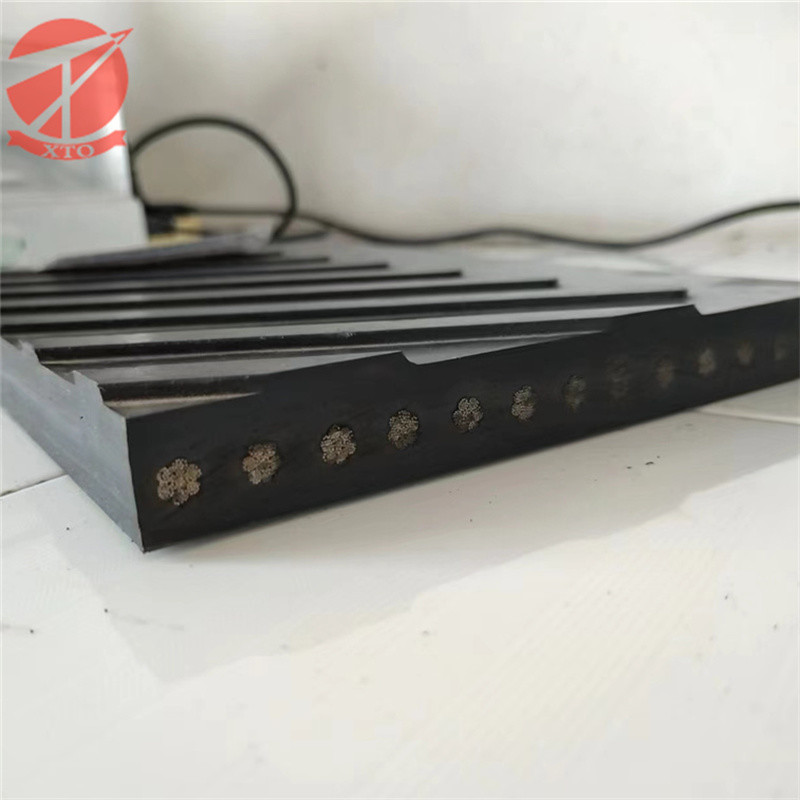

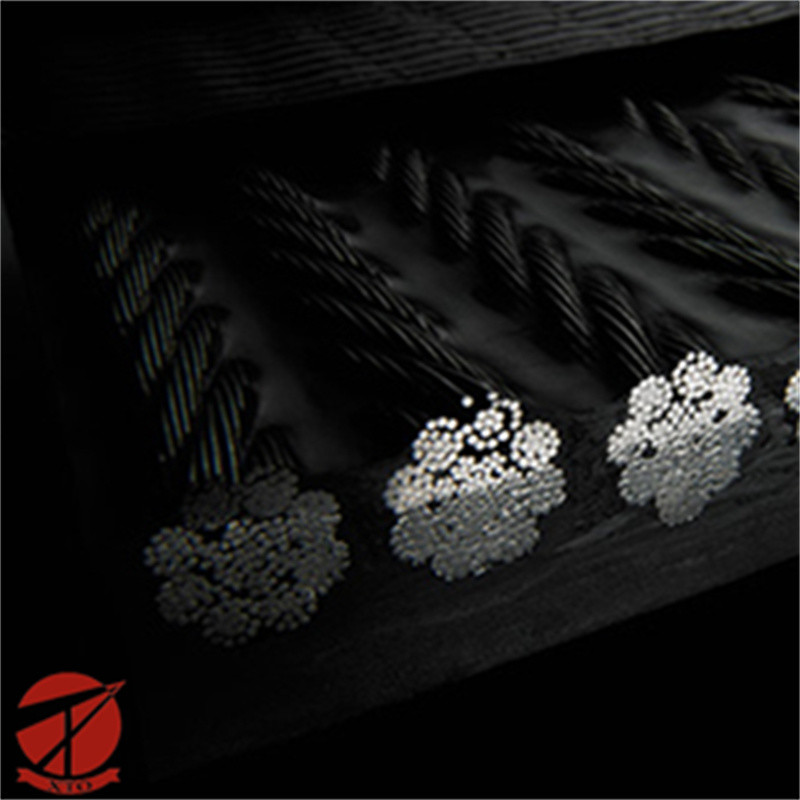

Their durability is mainly attributed to their structure consisting of steel cords embedded in rubber. The steel cords provide the belts with high tensile strength, while the rubber protects the internal components and offers excellent resistance to abrasion. Additionally, they are designed to withstand harsh environments as they can operate in extreme temperatures and moisture conditions.
Given their ability to handle high-stress loads, steel cord conveyor belt are a cost-effective choice. Their reliability reduces maintenance and replacement costs in the long run. Moreover, their exceptional durability extends their service life.
Features
- High tensile strength
- Small elongation in use
- Small diameter of drive pulley
- High adhesion between rubber and steel cord
- Even tension of steel cords
- Good troughability
- Inspection of the belt with X-rays
Standard Specifications
| Model | Tensile Strength(N/mm) |
Cord Pitch (mm) |
Cord Diameter (mm) |
Min Cover thickness (mm) |
Width (mm) |
| ST630 | 630 | 10 | 3 | 4 |
800-2400 |
| ST800 | 800 | 10 | 3.5 | 4 | |
| ST1000 | 1000 | 12 | 4 | 4 | |
| ST1250 | 1250 | 12 | 4.5 | 4 | |
| ST1600 | 1600 | 12 | 5 | 4 | |
| ST2000 | 2000 | 12 | 6 | 4 | |
| ST2500 | 2500 | 15 | 7.2 | 5 | |
| ST3150 | 3150 | 15 | 8.1 | 5.5 | |
| ST3500 | 3500 | 15 | 8.6 | 6 | |
| ST4000 | 4000 | 15 | 8.9 | 6.5 | |
| ST4500 | 4500 | 16 | 9.7 | 7 | |
| ST5000 | 5000 | 17 | 10.9 | 7.5 | |
| ST5400 | 5400 | 17 | 11.3 | 8 | |
| ST6300 | 6300 | 19.5 | 12.8 | 10 | |
| ST7000 | 7000 | 19.5 | 13.5 | 10 | |
| ST7500 | 7500 | 21 | 15 | 10 |
Note: Cover thickness, cord diameter, and cord pitch can be manufactured according to customer’s requirements.
Cover Grades
| Grade |
Tensile Strength(ISO37) Mpa
|
Elongation at break min. (ISO37) % |
Abrasion max. (ISO4649) mm³ |
| H | 24 | 450 | 120 |
| D | 18 | 400 | 100 |
| XTO D | 18 | 400 | 50 |
The values will help to determine the appropriate cover compound for the application or for the materials carries. Reliable assessment of the behavior of the covers in service for wear and cut resistance cannot be determined from tensile strength, and abrasion values alone.
Certifications
We passed ISO9001, ISO14001, ISO45001. And our products have repeatedly passed the quality testing in RWE, TUV and BV. In addition, we have passed 46 safety mark certificates of the China Mineral products and have obtained 27 national utility model patents and 3 invention patents.
Perfect Testing Equipment
We have a strong ability to develop new products. The company has an area of 3800 square meters of scientific research building.Four rubber material laboratories have been established, including material testing, formula testing, rubber mixing test and finished product testing, truly realize the strict control testing from raw materials to finished products, to ensure that the quality of products to meet the needs of users.
Applications
The application areas of steel cord conveyor belt are diverse and encompass various industries. Here's a detailed overview:
1.Mining and Quarrying: Steel cord conveyor belt find extensive use in the mining and quarrying industry for transporting materials such as coal, ores, and minerals. Given the harsh environments typically found in mines, these conveyor belts must exhibit high strength and resistance to wear, making steel cord conveyor belts indispensable in this sector.
2.Ports and Logistics: In ports and logistics, steel cord conveyor belt is utilized for loading and unloading cargo from ships, as well as for conveying materials during warehousing and sorting processes. Their ability to handle heavy and bulky goods, coupled with long service life and low maintenance costs, makes them essential equipment in this industry.
3.Construction Materials Industry: Steel cord conveyor belt is commonly used in the construction materials industry for transporting materials such as cement, sand, and concrete. They efficiently convey raw materials from one location to another at construction sites, thereby enhancing construction efficiency and job site safety.
4.Metallurgical Industry: In the metallurgical industry, steel cord conveyor belt is employed for transporting materials such as ores, slag, and molten metals. They withstand high temperatures and the corrosive effects of various substances, ensuring stable conveying performance even in demanding conditions.
5.Chemical Industry: Steel cord conveyor belt is widely used in the chemical industry for transporting chemical raw materials and products. Given the presence of corrosive substances and high-temperature environments common in chemical plants, conveyor belts in this sector must meet stringent requirements, making steel cord conveyor belt indispensable.
Why Choose Us?
Cooperative Partner
We are proud to have established long-term partnerships with many outstanding companies. These partners come from different industries, such as mining, manufacturing, logistics and transportation. For example, Ordered by BHP, RIO-TINTO, VALE repeatedly.We are committed to providing customers with efficient and reliable material handling solutions, and through close cooperation, we realize the sharing of resources and complementary advantages, and create greater value for customers.
Support and Services
Our Steel Cord Conveyor Belt product is designed to provide maximum strength and durability for heavy-duty applications. In addition to our high-quality belt materials, we also offer a range of technical support and services to ensure that our customers get the most out of their conveyor systems:
- Belt selection guidance to help determine the best belt for your specific application
- Belt installation and maintenance training for optimal performance and longevity
- On-site belt inspections and condition monitoring to identify potential problems before they become major issues
- Belt repair and splicing services to minimize downtime and maximize productivity
Our team of experts is dedicated to providing exceptional customer service and ensuring that our Steel Cord Conveyor Belt product meets your needs and exceeds your expectations.
